  Home > Product Center > Scissor
Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)  (Optional color)

HY-JSDB-A-8140

ULTRA THIN PULLEY SCISSOR LIFT

CHARACTERISTICS

1.This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.

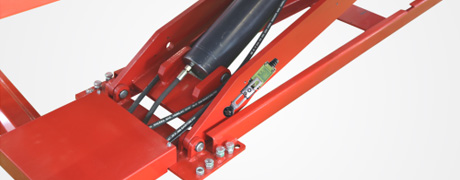

2.The machine‘s mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear, hydraulic and electrical tripling protection,  safe,  reliable, synchronous stable running.

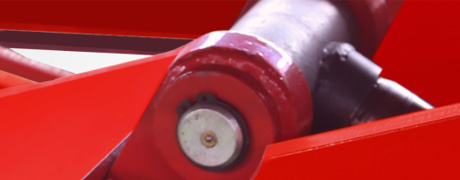

3.Oil cylinder with upper return oil, prevent oil cylinder rust.

TECHNICAL SPECIFICATIONS

  • 4000kgLifting Capacity
  • (Main) 1850mm (Jack) 450mmLifting Height
  • 190mmMin. Height
  • 70s-90sLifting Time
  • 4465mmLength Of The Platform
  • 680mmPlatform Width
  • 3.0kw-380v or 3.0kW-220vMotor Power
  • 24MPaOil Pressure Rating
  • 0.6-0.8MPaAir Pressure
  • 2030kgWeight

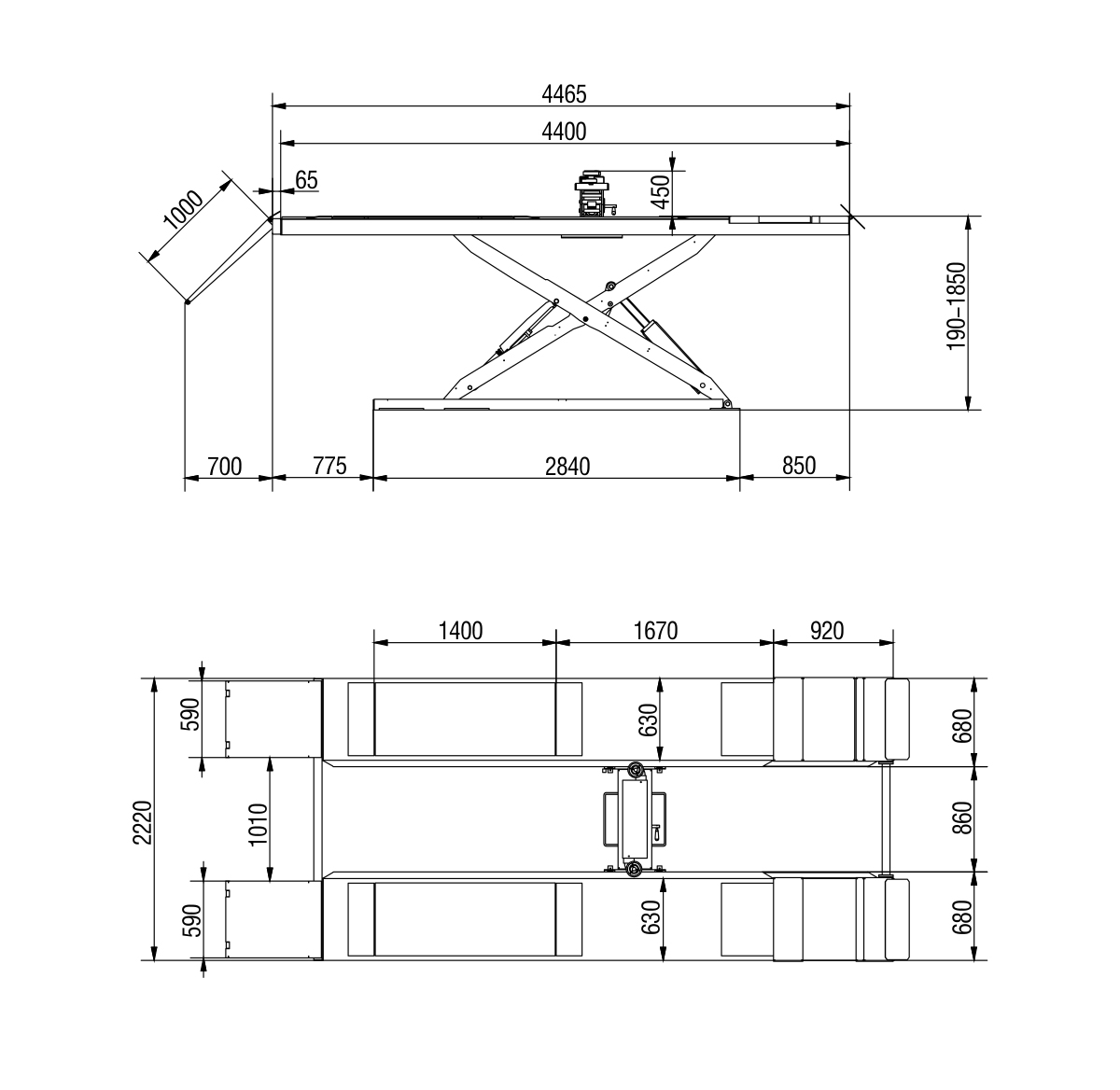

  DIMENSIONS (mm)
